Description
The EFR line of turbochargers was born out of an internal BorgWarner Turbo Systems program labeled Advanced Aftermarket Products or AAP. The program was engineered by a cross-functional team that began with the proverbial clean-sheet of paper. No legacy products, no preconceived notions of what a turbocharger could or could not have; no restrictions.
The aerodynamics for the product line were selected using a range of optimized combinations that would give users turbocharger solutions anywhere between 250 and 1000 horsepower capability per turbo. Next, a list of every notable design characteristic for an engine boosting device was tabled. Specific interest was given to new ideas that had never been formed in metal or had never been combined into an aftermarket turbo.

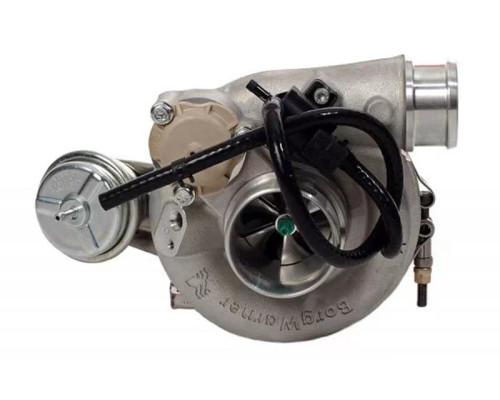

The result is the new EFR (Engineered for Racing) line of turbochargers from BorgWarner. These turbochargers contain a bevy of key attributes such as Gamma Ti turbine wheels, dual ceramic ball bearing cartridges and investment cast stainless steel turbine housings. Collectively, those features help give the EFR line its innovative appeal and will provide a breakthrough experience in durability, device responsiveness and installer/user satisfaction.
Features:
- Gamma Ti turbine wheel
- Dual ceramic ball bearing assembly with metal cage
- Forged milled extended tip compressor wheel
- Stainless steel turbin housing
- Water cooled bearing housing
- Large internal wastegate
- Compressor recirculation valve (BOV)
- Boost control soulenoid valve
- Standard T25 mounting flange
- Compressor Wheel outer diameter - 62mm
- Compressor Wheel inducer diameter - 49mm
- Turbine Wheel outer diameter - 58mm
- Turbo A/R - .64
- Inlet flange - T25
Other Part Numbers:
BorgWarner Turbos #bwa179150
