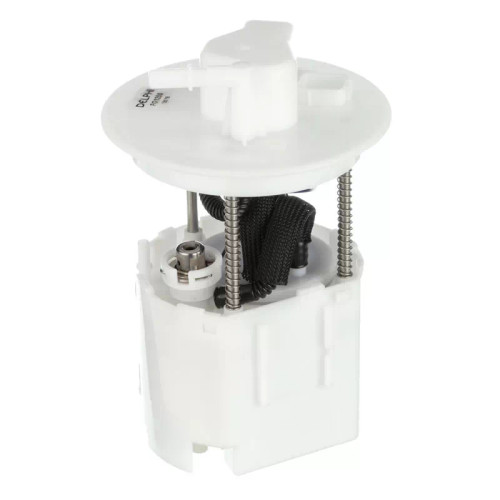

Delphi Fuel Pump Module Assembly

Delphi is a global OE manufacturer and all fuel pumps are built to Delphi's OE standards.

Empty float height and float retention matches OE specifications and guarantees correct gas gauge reading.

Lower amperage draws less load on vehicle's electrical system.

Always be sure to check and clean fuel tank to avoid unnecessary returns.

Lower failure rates due to its innovative design and durability.

Part is validated, tested and matched to the right vehicle application.

100 years of OE experience, supplier to the world's top automakers, OE Heritage and knowledge built into every aftermarket part, comprehensive portfolio for a wide range of vehicles and model years.

Features:

• System Pressure: 87 psi
• Package Contents: Fuel Pump Module Assembly w/Float Arm, Instruction Sheet
• Vapor Pressure Sensor: No
• Item Grade: Standard Replacement
• Fuel Level Sender Assembly Included: Yes
• Outlet Outside Diameter: 0.375
• Voltage: 12.0
• Fuel Type: Gas
• Regulator Included: Yes
• Terminal Type: Blade
• Gasket Or Seal Included: No
• Terminal Quantity: 5
• Lock Ring Included: No
• Terminal Gender: Male
• Strainer Included: Yes
• Inlet Type: Strainer
• Outlet Type: Quick Connect
• Outlet Quantity: 1
• In Tank or External: In Tank
• Resistance Ohms Empty: 53.0
• Resistance Ohms Full: 290.0
• Internal Or External Strainer: Internal
• Pump Type: Electric
