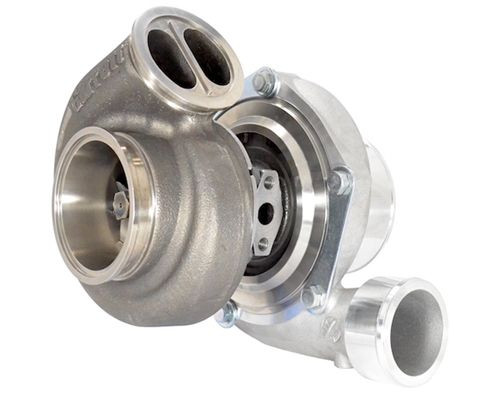

Garrett GEN2 GTX3582R dual ball bearing turbocharger with a T04S frame (4" inlet and 2.5" outlet compressor housing) and a .61 A/R Divided (Twin-scroll) V-Band Inlet and GT 3" V-Band outlet turbine housing (Ni-Resist Material). Advanced GEN2 billet compressor wheel capable of 850HP!
The Garrett GEN2 GTX3582R fits turbine housings for Garrett GT35 and GTX35 series turbochargers with a 68mm inducer and 84 trim turbine wheel.
Features:
- Advanced aerodynamics and ultra high flow Garrett GTX GEN2 compressor wheel
- Forged billet aluminum compressor wheel
- Dual ball bearing CHRA rotating assembly
Specifications:
- Compressor Wheel Inducer: 66mm
- Compressor Wheel Exducer: 82mm
- Compressor Wheel Trim: 64
- Compressor Housing: Full Size T04S Frame (4" Inlet and 2.5" Outlet) with anti-surge porting as shown
- Turbine Wheel Inducer: 68mm
- Turbine Wheel Exducer: 62mm
- Turbine Wheel Trim: 84
- Turbine Housing: .61 A/R Divided (Twin-Scroll) Inlet and GT 3" V-Band Outlet
Coolant (Water) and Oil Fittings, Flanges, and Components Solutions:
- Coolant - Water Options (Requires 2 units): 14mm Coolant Fitting and Lines
- Oil feed options: -4 AN with built-in Restrictor (Product Code: ATP-OIL-021)
- Oil drain flange: Product Code: ATP-FLA-010
- Oil drain gasket: Product Code: GRT-GSK-008
- 8mm x 1.25 (thread pitch) Stud: Product Code: MIA-FST-030
- 8mm x 1.25 (thread pitch) Locking Head Nut: Product Code: MIA-FST-031
- Divided V-Band Inlet Flange (for Turbo Manifold): Product Code:ATP-HSG-250
- V-Band Inlet Clamp: Product Code:CLC-CLA-047
- GT 3" V-Band Outlet Flange (for Downpipe): Product Code:ATP-FLS-246
- V-Band Outlet Clamp: Product Code:CLC-CLA-048
Note: Alternate coolant and oil fittings and flanges are available.
